IOT Control Router

Local logic processing

Dry-wet node IO detection

Modbus RTU/TCP Adaptive

Configuration software docking

Auto-collection and active reporting

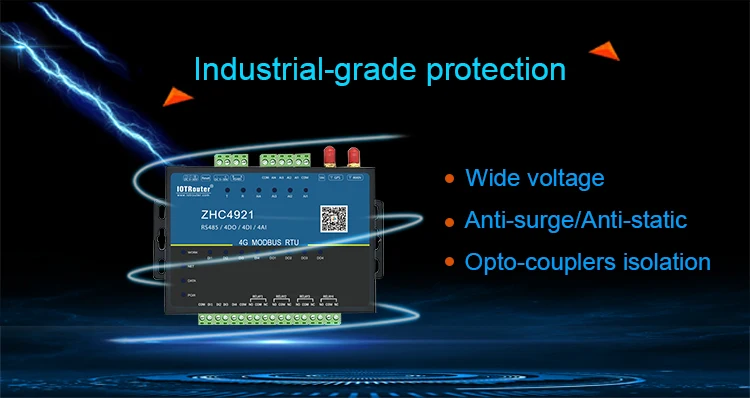

modebus io 4g wifi m2m ZHC4921 IOT control Router relay control rtu Modbus MQTT Gateway 116
Self-built server If Customers have their own serversZHC4921 can communicate directly with the client server after simply configured. The ZHC4921 follows the Modbus RTU/TCP protocol and also supports 485-channel transparent transmission protocols.

If customer doesn’t have a cloud server

When some customers use the configuration software, they can’t directly connect the PC and S485. The ZHC4921 supports the ZH-Cloud transmission. The customer only need to install the virtual serial port, the data of the ZHC4921 can be forwarded to the local serial port of the PC, which is more convenient and quick. (Also applicable to scenarios without a cloud server)

Configuration software docking

ZHC4921 has an RS485 interface, which supports the standard modbus RTU/TCP protocol. The configuration software can directly read and command the ZHC4921 through the RS485 interface.

modebus io 4g wifi m2m ZHC4921 IOT control Router relay control rtu Modbus MQTT Gateway 116
The ZHC4921 supports networking functions and supports one-to-one and multiple-to-one networks. This need is very practical for some specialization scenarios.
Analog auto-calibration threshold reporting The ZHC4921 presets the analog linear calibration parameter value, the user only needs to modify the k/b value to achieve the linear calibration effect. In addition, the effect of analyzing the analog data can be realized by adjusting the k/b value, and the threshold will be reported. Support automatic identification of Modbus RTU/TCP protocol Adaptive Modbus RTU/TCP protocol, the data format replied by the ZHC4921 is consistent with the data format sent by the cloud.
TCP CLient communication The serial server initiates a TCP connection to the server actively. If the connection fails, the connection is repeated repeatedly until it succeeds. If the connection is completed, the server and serial device can carry out two-way transparent data transmission.
